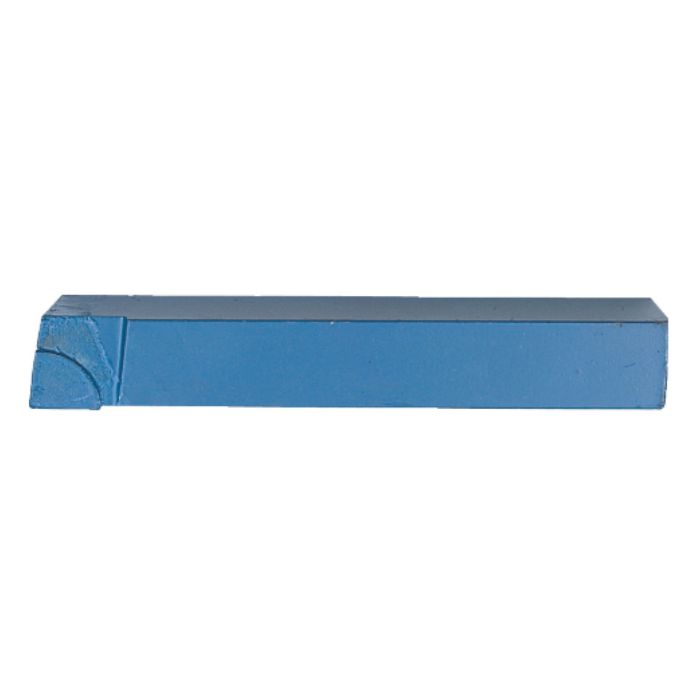

Kennedy Brazed Tip Turning & Boring Tools are manufactured in three standard grades. (All sizes are nominal). Manufactured to ISO DIN BHMA Standards.

P30: Carbide tipped tools are suitable for heavy duty turning and boring on all classes of steel. Suitable also for interrupted cutting and machining at low speeds and heavy feeds.

Spesification :

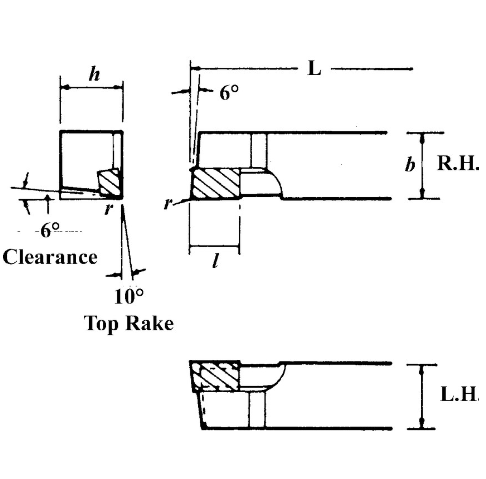

Clearance Angle : 6 degree
Cutting Direction : Right Hand
ISO Category Grade : P
ISO Cut : P20 – P30
Material Application : Steel
Overall Length : 4 inch
Shank Height : 1/2 inch
Shank Width : 1/2 inch
Tip Material : Carbide
Tool Number : 102
Tool Type : Bar Turning

Data Sheet KEN1002060K klik disini
